  • 15-PFM801-4MP

>Power supply: Input voltage DC24-36V, can provide DC12V 8W(max) power supply to remote cameras, simplify engineering wiring.

>Transmission effect: Real-time transmission video, no delay, strong anti-interference.
>Transmission distance: 400m (max).
>Main functions: Use single UTP (CAT-5E and CAT-6) real-time transmit 1-ch HD video signal and 1-ch DC power.
>Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities.

>Appearance structure: ABS engineering plastics shell, small size, use RJ45 standard interface connection mode.

Properties
Transmission Signal1 channel
Transmission DistanceHDCVI:
720P: max.400m(1312.34ft);
1080P: max. 250m(820.21ft);
4MP: max. 200m(656.17ft)
Power SupplyInput VoltageDistanceOutput Power
DC240-100mDC12V 8W
100-200mDC12V 6W
200-300mDC12V 3W
DC360-300mDC12V 8W
Category TypeUTP CAT5E/6
Video Transmission Properties
Coaxial Video ConnectorBNC-M
Connection WayRJ45
Compatible FormatHDCVI/TVI/AHD/CVBS
Resolution720P/1080P/4MP
Anti-interference>60db
Protection
ESD1a contact discharge electricity level 3
1b air discharge electricity level 3
Per: IEC61000-4-2
Coaxial Cable Connector2KV(common-code)
Per: IEC61000-4-5
UTP Cable Connector2KV(different-code), 4KV(common-code)
Per: IEC61000-4-5
Impedance
BNC Male75 ohms
UTP Cable100 ohms
Physical Properties

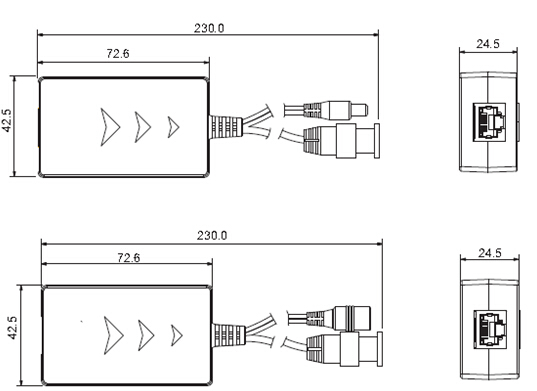

Dimension(L*W*H)72.6mm*42.5mm*24.5mm(2.86”x1.67”x0.96”)
ShellABS
ColorBlack
N.W.66.4g(0.15lb)/57.4g(0.13lb)
Stability
MTBF>10000H
Environmental
Operating Temperature-10℃~+55℃(14℉~131℉)
Storage Temperature-20℃~+70℃(-4℉~158℉)
Humidity0~95%(non-condensing)
