21-SLR12A

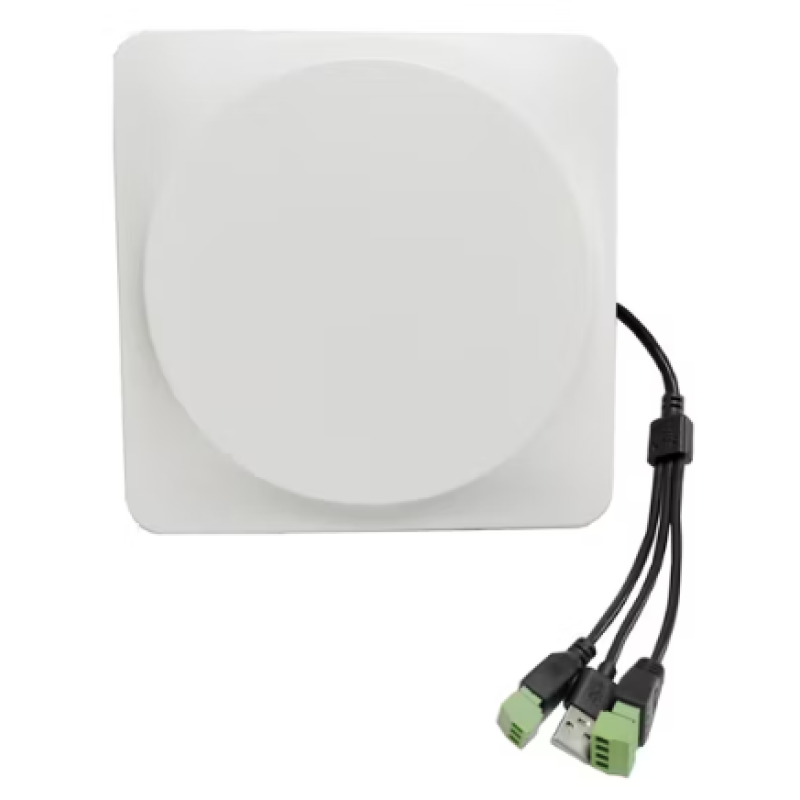

UHF RFID Reader 4-6 Meters Long Range Smart Card Reader (SLR12A)

UHF RFID Reader 4-6 meters Long Range,

RS232/UART, RS485, Wiegand26/34,

Dimensions 235x235x57mm

Frequency Range 902-928mhz (FCC),865868mhz (CE)

SLR12 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.

Features:

1. Self-intellectual property;

2. Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;

3. 865~868MHz, 902~928MHz frequency band(frequency customization optional);

4. FHSS or Fix Frequency transmission;

5. RF output power up to 30dbm(adjustable);

6. 8dbi antenna with effect distance up to 4m~6m*;

7. Support auto-running, interactive and trigger-activating work mode;

8. Low power dissipation with single +9V DC power supply;

9. Support RS232, RS485, Wiegand interface;

* Effective distance depends on antenna, tag and environment.

Characteristics:

Absolute Maximum Rating

Electrical and Mechanical Specification

Under TA＝25℃，VCC＝+12V unless specified

Interface:
